KeyViewer Struct Reference
An object of the KeyViewer class is passed to a ListViewer at the time of its construction so that the list viewer implements a way to see how keys are interpreted. More...
#include <keyviewer.h>
Public Member Functions | |
| std::string const & | application_name () const |
| The name to prompt the user with in the ViewerManager::appChooser menu. | |
| std::string | description () const |
| Return the name of the application to use when describing this viewer in the ViewerManager::appChooser or in the ViewerManager::ViewerSelector. | |
| virtual bool | fetchAllLines (std::list< std::string > &output) |
| int | handle_event (CursorWindow::input_event const *e, size_t index, ViewerManager *vm) |
| This is a no-op for the key viewer. | |
| void | handle_resize (CursorWindow::row_col const &vp_size) |
| This method is optional -- it will be invoked to tell you what the current viewport size is. If you dont' care, don't implement this method. If you do care, you'll want to save the size for later use. You might want to define this function if want to re-architect the strings_ array based on available screen space. | |
| virtual std::auto_ptr < std::list< std::string > > | help_text () |
| return true if this item should be displayed bold | |
| bool | is_marked (size_t index) |
| Is this item marked? Never returns true. | |
| virtual bool | is_special (size_t index) |
| KeyViewer () | |
| virtual | ~KeyViewer () |
Static Public Member Functions | |
| static Viewer * | app (ViewerManager *vm, std::string &fullname) |
| Handle user events -- no interpretation is done. All events just get logged to the window along with their categorization. | |
Public Attributes | |
| std::vector< std::string > | strings_ |
| items to display in the ListViewer | |
| std::string | title_ |
| title of list display viewer | |
Static Public Attributes | |
| static std::string | app_name = "KeyViewer" |
| Application "hook" function for the KeyViewer class. Use it as a parameter to add_app, like this: | |
Detailed Description
An object of the KeyViewer class is passed to a ListViewer at the time of its construction so that the list viewer implements a way to see how keys are interpreted.

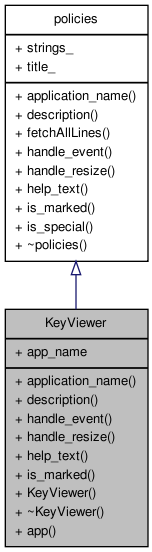

KeyViewer derives from ListViewer::policies and specializes the event handler function. It uses the strings_ member of policies_ to hold the displayable version of text describing keys.
To use add this class to the list of valid applications for a a ViewerManager object, do this:
ViewerManger vm; ... vm.add_app(KeyViewer::app, KeyViewer::app_name);
This makes the directory viewer avaiable in the application chooser menu brought up when you split the screen or replace the current viewer.
There is of course, no reason to have a KeyViewer object unless you are also creating a ListViewer object because a KeyViewer is nothing more than a set of policies for controlling a ListViewer's behavior. There is really no reason to have either unless you have a ViewerManager because it declares global variables used by ListViewer.
Here's how to manually create a KeyViewer and pop it up in the viewer manager:
ViewerManger vm; ... vm.add_app(KeyViewer::app, KeyViewer::app_name); ... FileName curdir="*"; curdir.convert_to_absolute_path(); vm.add(new ListViewer(new KeyViewer(curdir), &vm), curdir);
This example both adds the KeyViewer class as a valid application type _and_ it creates and pops up a viewer that lets you look at keys.
Definition at line 19 of file keyviewer.h.
Constructor & Destructor Documentation
| KeyViewer | ( | ) |
| ~KeyViewer | ( | ) | [virtual] |
Definition at line 118 of file keyviewer.cxx.
Member Function Documentation
| Viewer * app | ( | ViewerManager * | vm, | |
| std::string & | fullname | |||
| ) | [static] |
Handle user events -- no interpretation is done. All events just get logged to the window along with their categorization.
Definition at line 103 of file keyviewer.cxx.
| std::string const& application_name | ( | ) | const [virtual] |
The name to prompt the user with in the ViewerManager::appChooser menu.
Implements policies.
Definition at line 96 of file keyviewer.h.
| std::string description | ( | ) | const [virtual] |
Return the name of the application to use when describing this viewer in the ViewerManager::appChooser or in the ViewerManager::ViewerSelector.
Implements policies.
Definition at line 102 of file keyviewer.h.
| bool fetchAllLines | ( | std::list< std::string > & | output | ) | [virtual, inherited] |
- See also:
- cxxtls::Viewer::fetchAllLines().
Reimplemented in DirectoryViewer.
Definition at line 723 of file viewer.cxx.
| int handle_event | ( | CursorWindow::input_event const * | e, | |
| size_t | index, | |||
| ViewerManager * | vm | |||
| ) | [virtual] |
This is a no-op for the key viewer.
Implements policies.
Definition at line 55 of file keyviewer.cxx.
| void handle_resize | ( | CursorWindow::row_col const & | new_size | ) | [virtual] |
This method is optional -- it will be invoked to tell you what the current viewport size is. If you dont' care, don't implement this method. If you do care, you'll want to save the size for later use. You might want to define this function if want to re-architect the strings_ array based on available screen space.
Note -- do not delete or add strings_ in this method.
Reimplemented from policies.
Definition at line 48 of file keyviewer.cxx.
| std::auto_ptr< std::list< std::string > > help_text | ( | ) | [virtual] |
return true if this item should be displayed bold
This function returns the help text specific to this application. The ListViewer help method will first present the user with the return values from this function then it will present ListViewer specific help, then it will present ViewerManager specific help.
Implements policies.
Definition at line 83 of file keyviewer.cxx.
| bool is_marked | ( | size_t | index | ) | [virtual] |
Is this item marked? Never returns true.
Implements policies.
Definition at line 44 of file keyviewer.cxx.
| bool is_special | ( | size_t | index | ) | [virtual, inherited] |
Reimplemented in DirectoryViewer.
Definition at line 42 of file viewer.cxx.
Member Data Documentation
std::string app_name = "KeyViewer" [static] |
Application "hook" function for the KeyViewer class. Use it as a parameter to add_app, like this:
vm.add_app(KeyViewer::app, "KeyViewer");
Definition at line 91 of file keyviewer.h.
std::vector<std::string> strings_ [inherited] |
items to display in the ListViewer
std::string title_ [inherited] |
The documentation for this struct was generated from the following files:
- include/cxxtls/keyviewer.h
- lib/keyviewer.cxx
